PostPosted: Wed Jan 27, 2010 9:06 am    Post subject: 787 style Throttle building Reply with quote

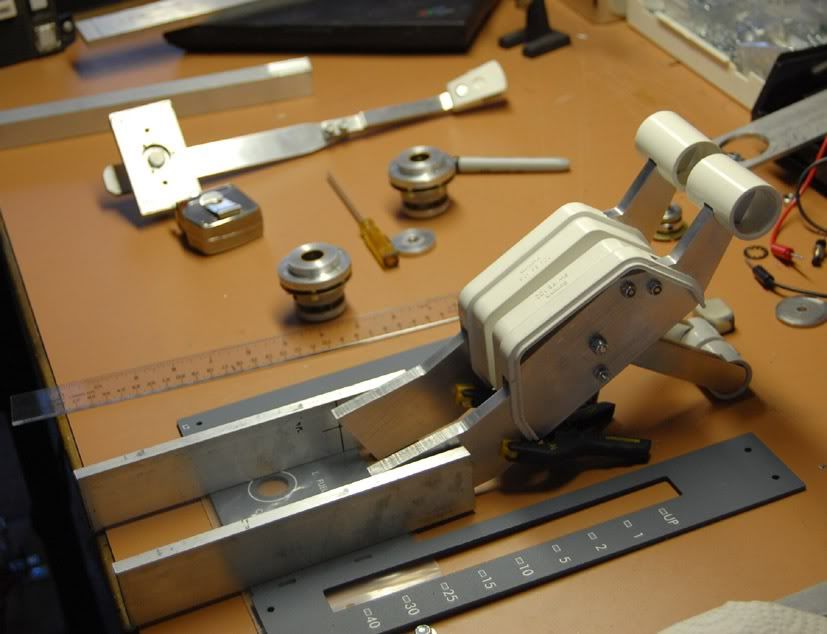

Most parts are now done.
All metal construction.
No CAD, all hand!
Super Fun even if zillion of hours are involved





_________________
Jack
Full B737-800 DSTD/Sim-Avionics P3d4
ALL FDS & OEMs (+custom TQ)
Back to top
View user's profile Send private message
jackpilot
Site Admin


Joined: 25 Apr 2004
Posts: 979
Location: Montreal

PostPosted: Thu Feb 11, 2010 10:10 am    Post subject: coming along Reply with quote



_________________
Jack
Full B737-800 DSTD/Sim-Avionics P3d4
ALL FDS & OEMs (+custom TQ)
Back to top
View user's profile Send private message
melnato



Joined: 04 Feb 2006
Posts: 1086
Location: Australia

PostPosted: Thu Feb 11, 2010 5:22 pm    Post subject: Reply with quote

Hey nice work Jack!
Are you going all the way on the 787?

I really should get cracking in my rebuilding TQ Rolling Eyes

Nat
Back to top
View user's profile Send private message Send e-mail Visit poster's website
Alaintrea



Joined: 12 Nov 2004
Posts: 93
Location: Quebec city

PostPosted: Fri Feb 12, 2010 3:39 pm    Post subject: Reply with quote

Hi Jack Smile
I tought you were building a 737 sim...!
What you acheived up to now om those throttle is wonderful!
Alain
_________________
Alain (Canada)
http://www.sim-737ng.com/
Back to top
View user's profile Send private message Visit poster's website
jackpilot
Site Admin


Joined: 25 Apr 2004
Posts: 979
Location: Montreal

PostPosted: Sun Feb 14, 2010 5:47 pm    Post subject: Reply with quote

Thank you Nat & Alain...
Just that I do not like the old klunker TQ of the 737, so my NG with its 787 style TQ will be showing the way for Boeing next generation...lol
Thanks for the comments.
Jack

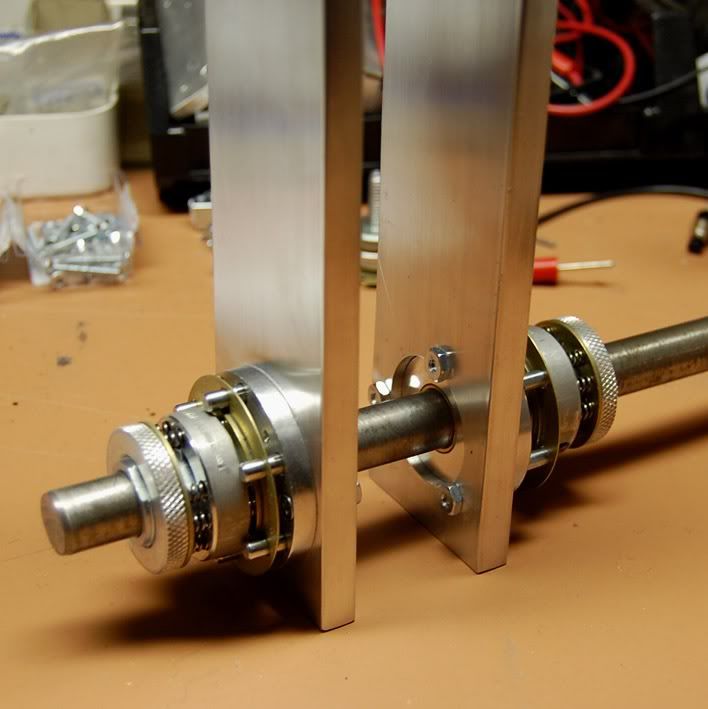

Here is the bottom part of the power levers with the clutches...

_________________
Jack
Full B737-800 DSTD/Sim-Avionics P3d4
ALL FDS & OEMs (+custom TQ)
Back to top
View user's profile Send private message
jackpilot
Site Admin


Joined: 25 Apr 2004
Posts: 979
Location: Montreal

PostPosted: Sat Feb 20, 2010 11:19 pm    Post subject: Reply with quote




_________________
Jack
Full B737-800 DSTD/Sim-Avionics P3d4
ALL FDS & OEMs (+custom TQ)
Back to top
View user's profile Send private message
Ivar Hestnes



Joined: 28 Aug 2006
Posts: 319
Location: Flemma, Norway

PostPosted: Sun Feb 21, 2010 4:18 am    Post subject: Reply with quote

This is very impressive work Jack.

Smile
Back to top
View user's profile Send private message Send e-mail
jackpilot
Site Admin


Joined: 25 Apr 2004
Posts: 979
Location: Montreal

PostPosted: Fri Feb 26, 2010 10:01 pm    Post subject: Reply with quote

first test on TQ levers...



_________________
Jack
Full B737-800 DSTD/Sim-Avionics P3d4
ALL FDS & OEMs (+custom TQ)
Back to top
View user's profile Send private message
jackpilot
Site Admin


Joined: 25 Apr 2004
Posts: 979
Location: Montreal

PostPosted: Wed Mar 03, 2010 9:26 am    Post subject: Reply with quote

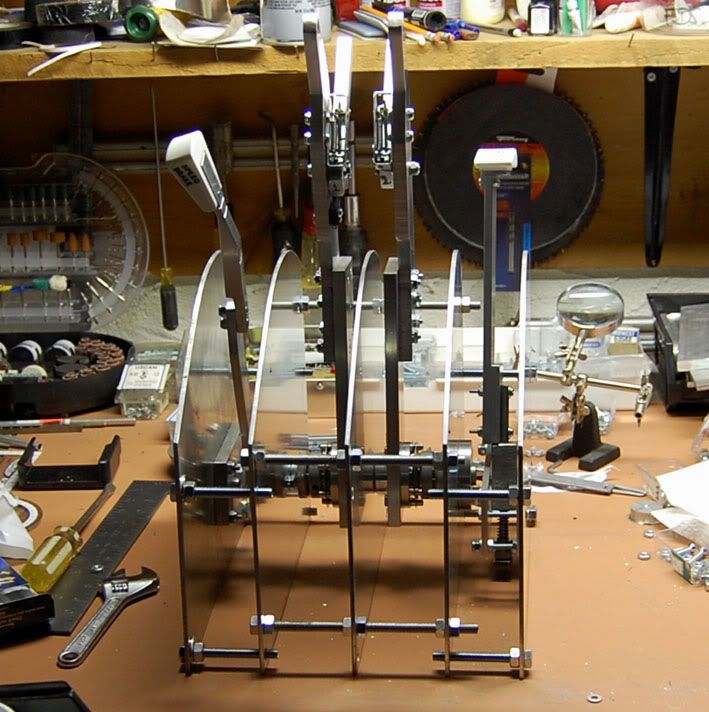

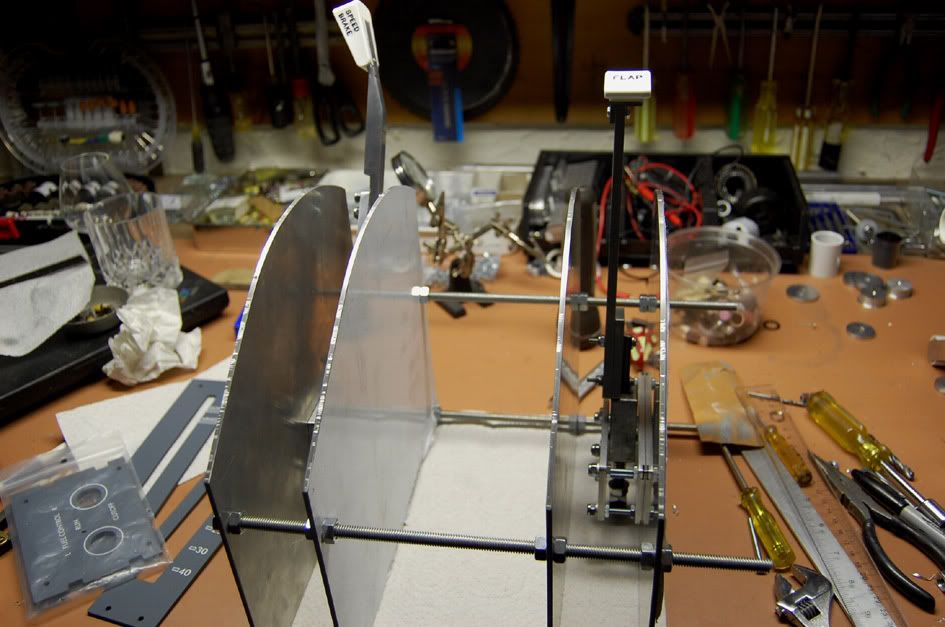

The two Throttle levers are set as an independant assembly and the speed brake and flaps modules are bolted on each side. This way the main axle is limited to the T levers and does not go through the whole TQ.Easier to disassemble and access for maintenance or adjustment




_________________
Jack
Full B737-800 DSTD/Sim-Avionics P3d4
ALL FDS & OEMs (+custom TQ)
Back to top
View user's profile Send private message
jackpilot
Site Admin


Joined: 25 Apr 2004
Posts: 979
Location: Montreal

PostPosted: Sun Mar 28, 2010 9:40 am    Post subject: Reply with quote

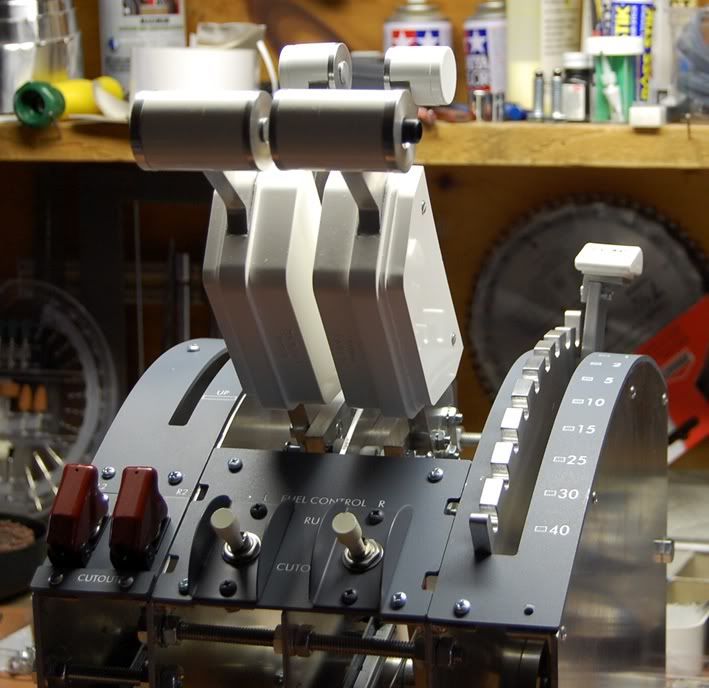

Starting to put a skin on it..great FDS panels!

_________________
Jack
Full B737-800 DSTD/Sim-Avionics P3d4
ALL FDS & OEMs (+custom TQ)
Back to top
View user's profile Send private message
tugo31



Joined: 30 Nov 2007
Posts: 112
Location: Mexico

PostPosted: Sun Mar 28, 2010 5:36 pm    Post subject: Reply with quote

Beautifull!!!
Back to top
View user's profile Send private message
melnato



Joined: 04 Feb 2006
Posts: 1086
Location: Australia

PostPosted: Sun Mar 28, 2010 5:53 pm    Post subject: Reply with quote

Damn Nice Jack!!!!!!!!!

Nat
Back to top
View user's profile Send private message Send e-mail Visit poster's website
jackpilot
Site Admin


Joined: 25 Apr 2004
Posts: 979
Location: Montreal

PostPosted: Mon Apr 19, 2010 10:08 pm    Post subject: Reply with quote

Almost finished, interfaced and calibrated (with Steve's help)
One thing that I cannot send over the net is the feel of it.
The all metal construction really makes a difference, all levers move smooooth with neat "clunks" on the stops and there is absolutely no play or side movement.
Thank you for the nice comments.




_________________
Jack
Full B737-800 DSTD/Sim-Avionics P3d4
ALL FDS & OEMs (+custom TQ)


Last edited by jackpilot on Fri Aug 29, 2014 8:35 am; edited 1 time in total
