 Posted: Wed Mar 14, 2007 3:45 pm Post subject: LE DEVICE FLAPS Panel |
 |
|
Found a way to "enlighten" that FDS panel
Leds can be fired selectively according to the flaps/slats position.
_________________
Jack
Full B737-800 DSTD/Sim-Avionics P3d4
ALL FDS & OEMs (+custom TQ) |
|
| Back to top |
|
 |
warvet
Joined: 15 May 2004
Posts: 1298
|
| Posted: Thu Mar 15, 2007 12:06 am Post subject: |
|
|
Jack,
Thats looks great..not Airbus lol but still looks great, nice work my friend.
Tim
A340
Canada |
|
| Back to top |
|
|
Joe Cygan
Joined: 10 Nov 2003
Posts: 361
Location: Texas
|
| Posted: Thu Mar 15, 2007 1:14 pm Post subject: |
|
|
I had to take a double look there for a second, looks great!
_________________
JC |
|
| Back to top |
|
|
jackpilot
Site Admin
Joined: 25 Apr 2004
Posts: 1036
Location: Montreal
|
| Posted: Fri Mar 16, 2007 7:08 am Post subject: |
|
|
Actually, the design can be improved by recessing the leds behind the holes (which should be laser cutouts of appropriate shape) and by applying stripes of green and amber filters in front. Light bleeding could be a problem though.
The way I did is fast and easy
Round holes are drilled in the panel for the leds to go through
Two very small holes for each led wires are drilled in the backer, the leds sit on the backer and wires are set with hot glue.
Link to the sim can be either with flaps position and/or with the transit/extended MIP anunnciators
_________________
Jack
Full B737-800 DSTD/Sim-Avionics P3d4
ALL FDS & OEMs (+custom TQ) |
|
| Back to top |
|
|
mauriceb
Joined: 22 Aug 2005
Posts: 1051
Location: Gravenhurst, Ontario - Canada
|
| Posted: Fri Mar 16, 2007 10:35 pm Post subject: |
|
|
Jack,
This looks great. I do have a question though (a couple actually for now anyway). Where the heck is this FDS panel located?
Also, do the LEDs light up in sequence (1-2-3-4) or all at once?
Thanks,
Maurice |
|
| Back to top |
|
|
jackpilot
Site Admin
Joined: 25 Apr 2004
Posts: 1036
Location: Montreal
|
| Posted: Sat Mar 17, 2007 10:32 am Post subject: |
|
|
1) aft overhead panel
2) they light up in rows according to the flaps/slats position, in transit, extended, fully extended, stowed(no lights)
Rather sexy panel , better see the explainations in B.Bulfer 737 Guide
_________________
Jack
Full B737-800 DSTD/Sim-Avionics P3d4
ALL FDS & OEMs (+custom TQ) |
|
| Back to top |
|
|
mauriceb
Joined: 22 Aug 2005
Posts: 1051
Location: Gravenhurst, Ontario - Canada
|
| Posted: Sat Mar 17, 2007 12:27 pm Post subject: |
|
|
| jackpilot wrote: | 1) aft overhead panel
2) they light up in rows according to the flaps/slats position, in transit, extended, fully extended, stowed(no lights)
Rather sexy panel , better see the explainations in B.Bulfer 737 Guide |
Ahhh!. So, a long, long, long way for me to get there yet.  . Sometimes "I dream of Jeannie". Would be nice to have someone that can materialize things for you
Thanks,
Maurice |
|
| Back to top |
|
|
jackpilot
Site Admin
Joined: 25 Apr 2004
Posts: 1036
Location: Montreal
|
| Posted: Sat Mar 17, 2007 3:09 pm Post subject: |
|
|

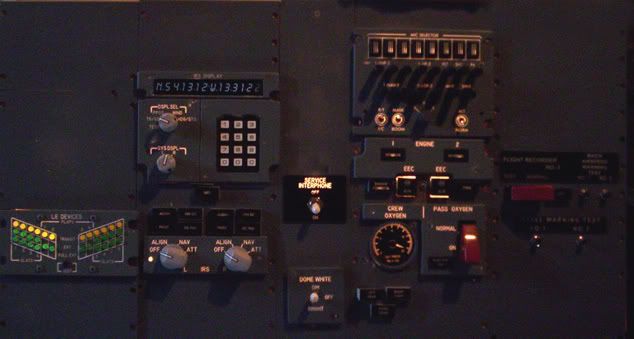

here it is....sorry for the cheap quality of the pic with no flash!
_________________
Jack
Full B737-800 DSTD/Sim-Avionics P3d4
ALL FDS & OEMs (+custom TQ) |
|
