Jetcos



Joined: 30 Sep 2005
Posts: 1226
Location: Newmarket,Ontario

PostPosted: Mon Jul 04, 2016 1:17 pm    Post subject: Reply with quote

They do fit, you need to modify the Fuel Temperature gauge to fit.

The holes in the backer need to be drilled to a clearance hole. Tap the holes in the gauges with a 6/32" tap making sure you don't drive the tap into the PCB.

Large gauge needs to be reworked by using screws in the Bezel.
_________________
Steve Cos
Vice President and Tech Support
Flightdeck Solutions (FDS)


Last edited by Jetcos on Mon Jul 04, 2016 1:36 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website
Winstonc



Joined: 09 Mar 2016
Posts: 407
Location: California

PostPosted: Mon Jul 04, 2016 1:31 pm    Post subject: Reply with quote

Thanks Steve
Back to top
View user's profile Send private message
Winstonc



Joined: 09 Mar 2016
Posts: 407
Location: California

PostPosted: Mon Jul 04, 2016 8:46 pm    Post subject: Reply with quote

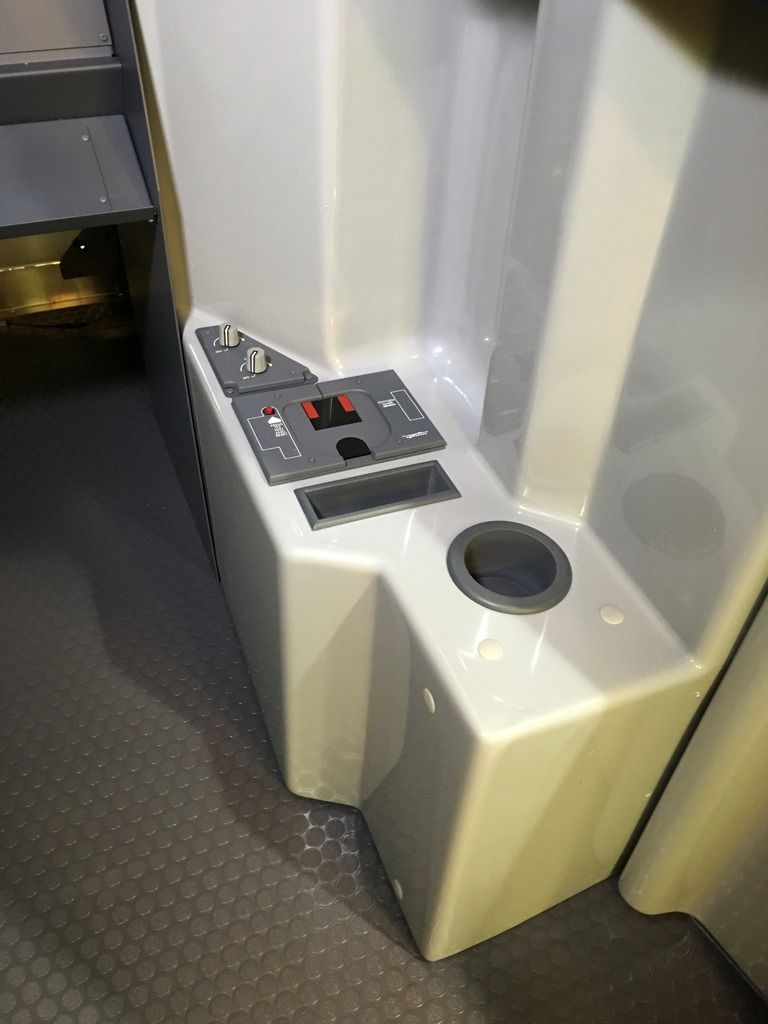

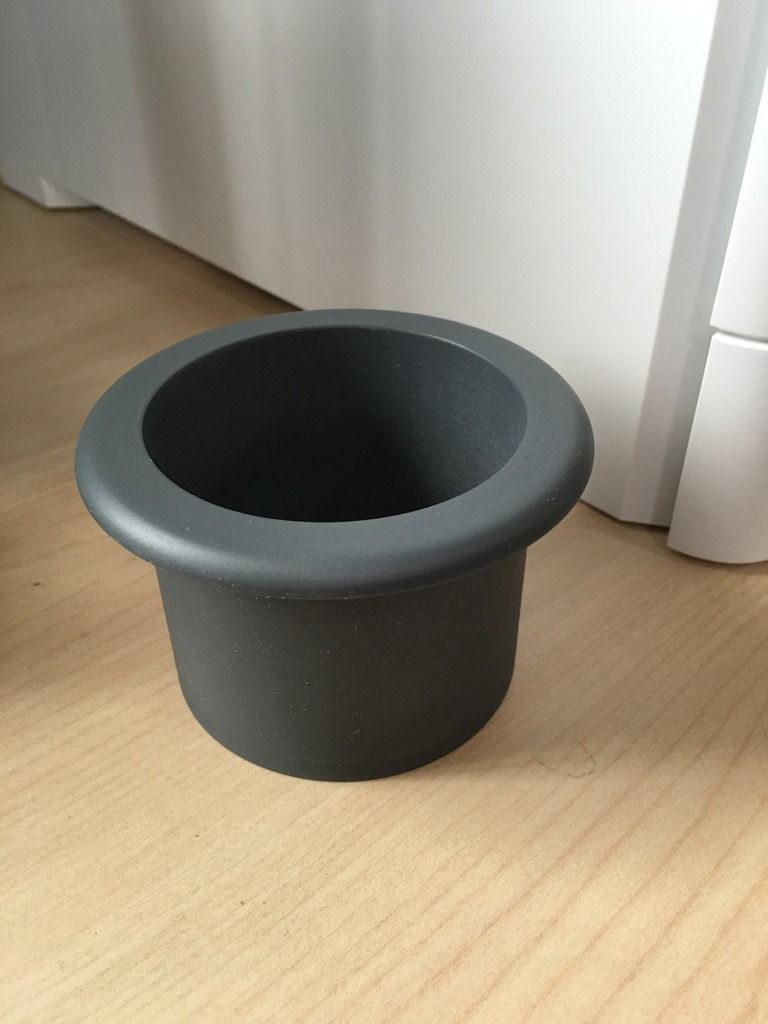

3D printed and painted cup and document holder for forward lower liner next to oxygen mask bin.

David



Back to top
View user's profile Send private message
Winstonc



Joined: 09 Mar 2016
Posts: 407
Location: California

PostPosted: Thu Jul 07, 2016 8:41 pm    Post subject: Reply with quote

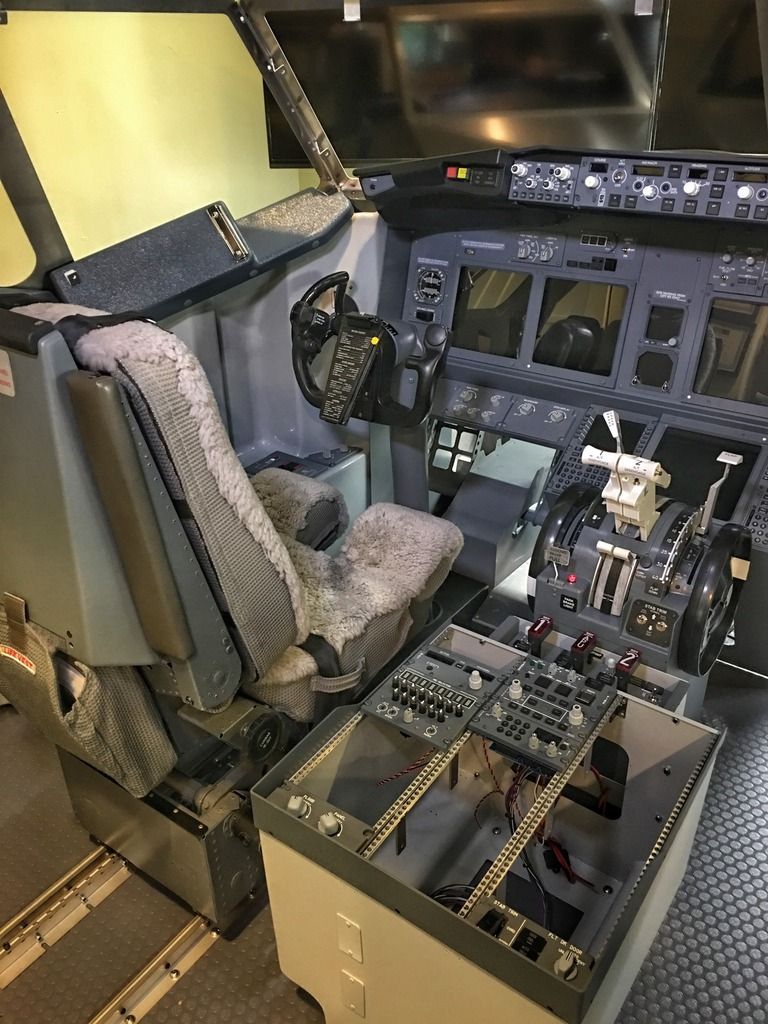

Been making steady progress and now have throttle quadrant, yoke and rudder pedals all installed and fully functioning.

However, my todo list seems to be getting longer rather than shorter 😎

David

Back to top
View user's profile Send private message
Winstonc



Joined: 09 Mar 2016
Posts: 407
Location: California

PostPosted: Fri Jul 08, 2016 8:24 pm    Post subject: Reply with quote

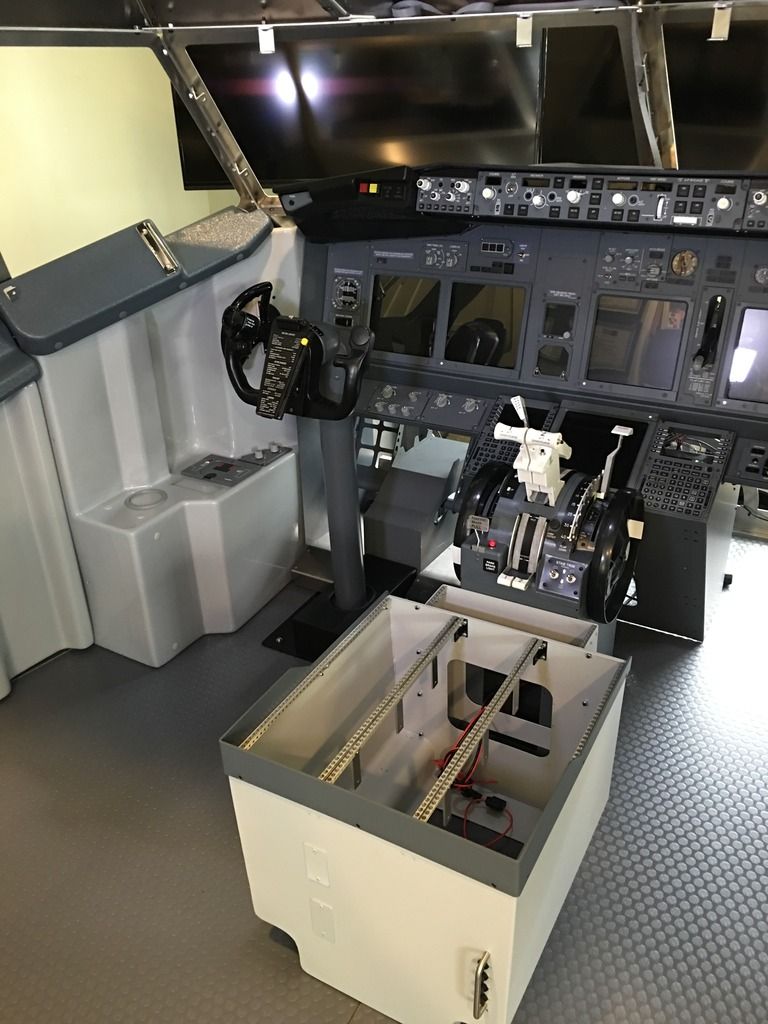

Today I got the seat rails and seat fixed in place as well as some behind the scenes cable tidying and some software tinkering.

David

Back to top
View user's profile Send private message
Winstonc



Joined: 09 Mar 2016
Posts: 407
Location: California

PostPosted: Sat Jul 09, 2016 12:37 pm    Post subject: Reply with quote

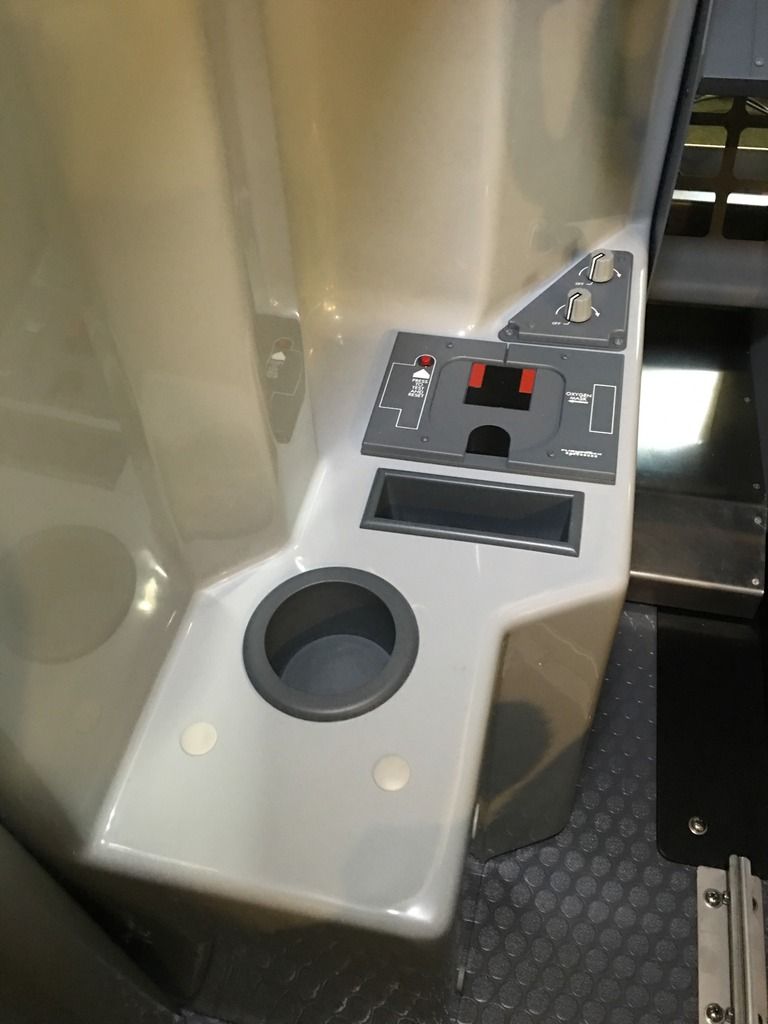

The captains side cup and document holders that I 3D printed are in.

David

Back to top
View user's profile Send private message
Winstonc



Joined: 09 Mar 2016
Posts: 407
Location: California

PostPosted: Sat Jul 09, 2016 7:34 pm    Post subject: Reply with quote

Last update for today 😃

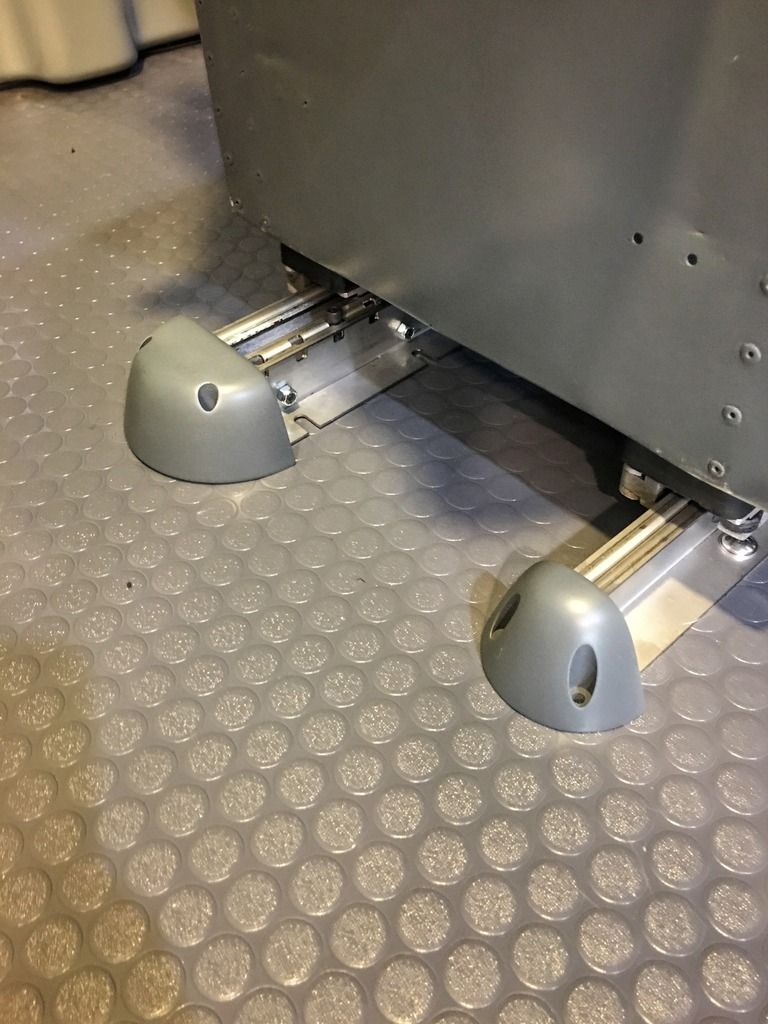

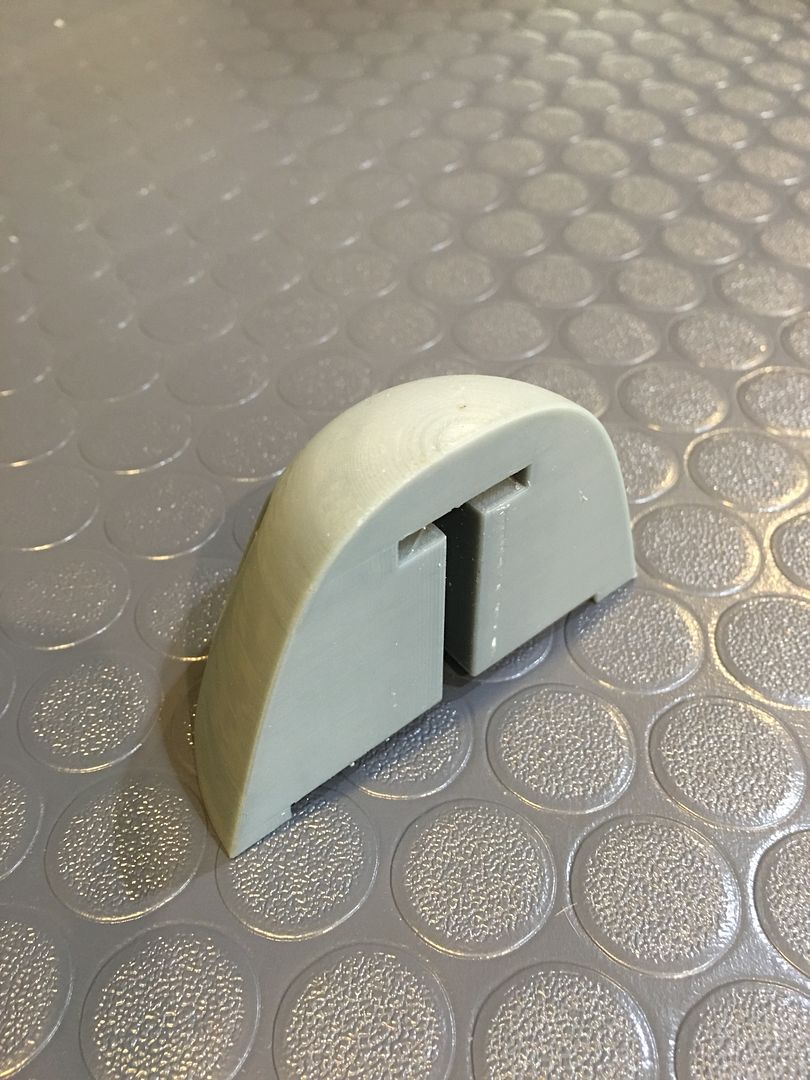

I designed and printed an end cap for the FDS seat rails as I know at some point I'm going to stand on the corner and utter some non-repeatable expletives!

I still have to do the left side which is a little more complex on the back end because of the seat locking rail.

The end caps fit onto the ends of the rail and then are screwed to the base.

David




Back to top
View user's profile Send private message
MichaelYSSY



Joined: 06 Jan 2015
Posts: 645
Location: Sydney - Australia

PostPosted: Sat Jul 09, 2016 10:17 pm    Post subject: Reply with quote

Almost makes me want to go out and purchase a 3D Printer

Good work David.


Cheers
Michael
Back to top
View user's profile Send private message
Winstonc



Joined: 09 Mar 2016
Posts: 407
Location: California

PostPosted: Sat Jul 09, 2016 10:18 pm    Post subject: Reply with quote

Thanks Michael.
Back to top
View user's profile Send private message
Winstonc



Joined: 09 Mar 2016
Posts: 407
Location: California

PostPosted: Mon Jul 11, 2016 8:03 pm    Post subject: Reply with quote

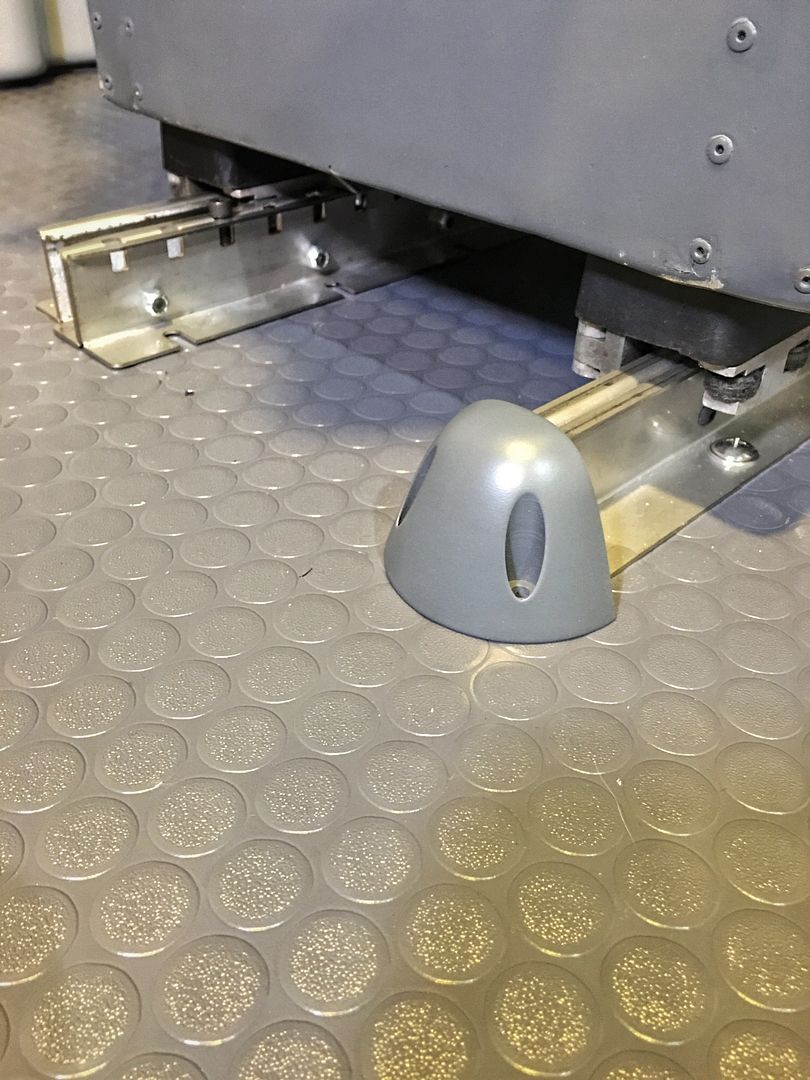

Second seat rail end cap is done. This is wider as it has to encompass the main and locking rail.

Now just have to print the two caps for the other end.

David.

Back to top
View user's profile Send private message
787 George



Joined: 01 Oct 2014
Posts: 152
Location: Lubbock TX, USA

PostPosted: Tue Jul 12, 2016 7:46 am    Post subject: Reply with quote

Keep the photos coming David. You are doing a great job and that 3D printer is pretty sweet!
Back to top
View user's profile Send private message
Winstonc



Joined: 09 Mar 2016
Posts: 407
Location: California

PostPosted: Tue Jul 12, 2016 12:26 pm    Post subject: Reply with quote

Thanks!
Back to top
View user's profile Send private message
OmniAtlas



Joined: 06 Jul 2012
Posts: 124
Location: Australia

PostPosted: Wed Jul 13, 2016 10:09 pm    Post subject: Reply with quote

Winstonc wrote:
Got all the wiring in the MIP done and tidied up as well as modifying and re-printing the covers for the ibl dim-dist boards and the Flight Illusion controler to include vent holes as per Jacks suggestion.

I also moved the MIP into the nose and started fitting the lower liners.

David





Hi - very nice and neat. Did you 3D print the housing for the dimming boards? I am looking for something to house mine in and also my joystick Leo board to prevent a short circuit on the underside.

Nice project!
Back to top
View user's profile Send private message
Winstonc



Joined: 09 Mar 2016
Posts: 407
Location: California

PostPosted: Wed Jul 13, 2016 11:20 pm    Post subject: Reply with quote

OmniAtlas wrote:
Winstonc wrote:
Got all the wiring in the MIP done and tidied up as well as modifying and re-printing the covers for the ibl dim-dist boards and the Flight Illusion controler to include vent holes as per Jacks suggestion.

I also moved the MIP into the nose and started fitting the lower liners.

David





Hi - very nice and neat. Did you 3D print the housing for the dimming boards? I am looking for something to house mine in and also my joystick Leo board to prevent a short circuit on the underside.

Nice project!


Thanks

Yes I did 3D print them.

David
Back to top
View user's profile Send private message
Winstonc



Joined: 09 Mar 2016
Posts: 407
Location: California

PostPosted: Thu Jul 14, 2016 5:12 pm    Post subject: Reply with quote

FO side cup and document holder printed and installed.

David

Back to top
View user's profile Send private message
